 Current Location：Home >> Broadcasting Video Camera Battery >> Gold Mount Battery |
|
|
|
|
|
|
Broadcasting Video Camera Battery
|
|
|

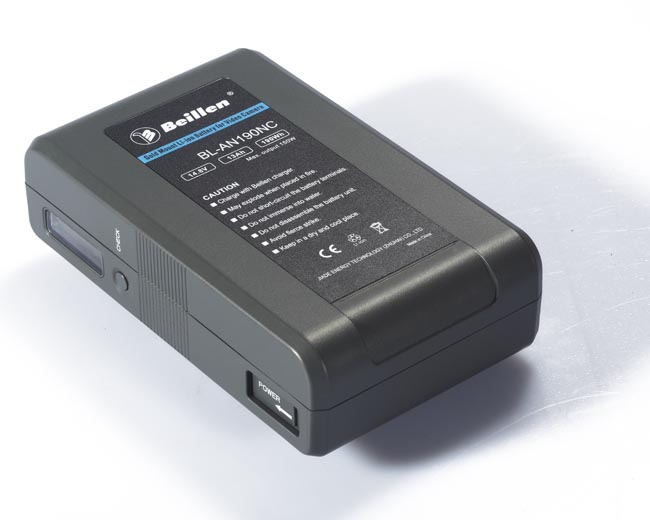

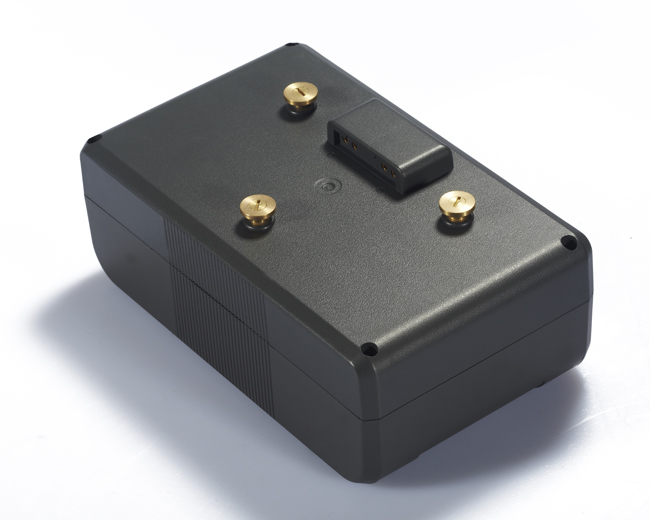

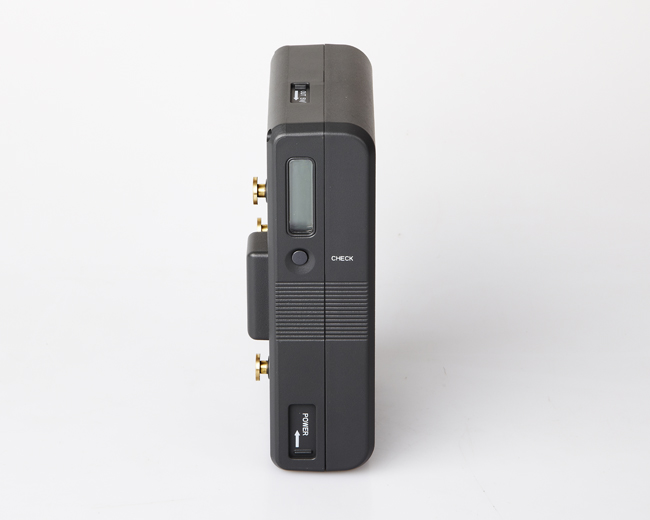

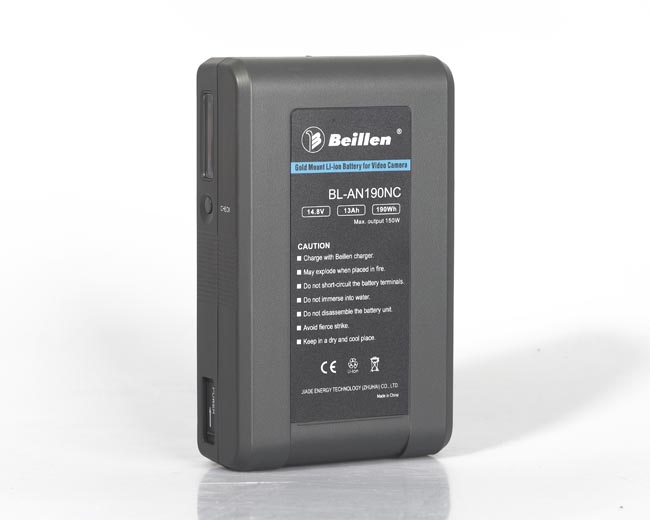

BL-AN190NC (12A output)
|
|
|
|
|
|
● Support high-power constant output to 150W and 12A.
● LCD screen which precisely displays the remaining capacity.
● 5V1A USB output is added for smart mobile phone and Apple products. Built-in standard D-TAP that is able to directly supply ultralight camera light.
● Cell and PCM are all connected by using specially-designed nickel sheet for standard production.
● Built-in intelligent control circuit, multiple protection for temperature, current, voltage and shot-circuit.
|
|
|
|
|
产品规格及说明
|
|
BL-AN190NC (12A output)
BL-AN190NC
|
Capacity
|
13Ah 190Wh
|
|
Voltage
|
14.8V
|
|
Max. output
|
150W/12A
|
|
Mount type
|
Gold mount
|
|
Typical run-time
|
115mins@100W
|
|
Net weight
|
1120g
|
|
Dimension
|
172(L) ×102(W) ×57(T)mm
|
|
Storage environment
|
-20℃～+40℃ 45%～75%RH (1～3 months)
-20℃～+25℃ 45%～75%RH (3～12 months)
|
|
Working environment
|
0℃～+45℃ ＜85%RH (charge)
-20℃～+60℃ ＜85%RH (discharge)
|
|
|
|
|
|
|
