Broadcasting Video Camera Battery
|
|
|
BL-M-BP160
|
|
|
|
|
|

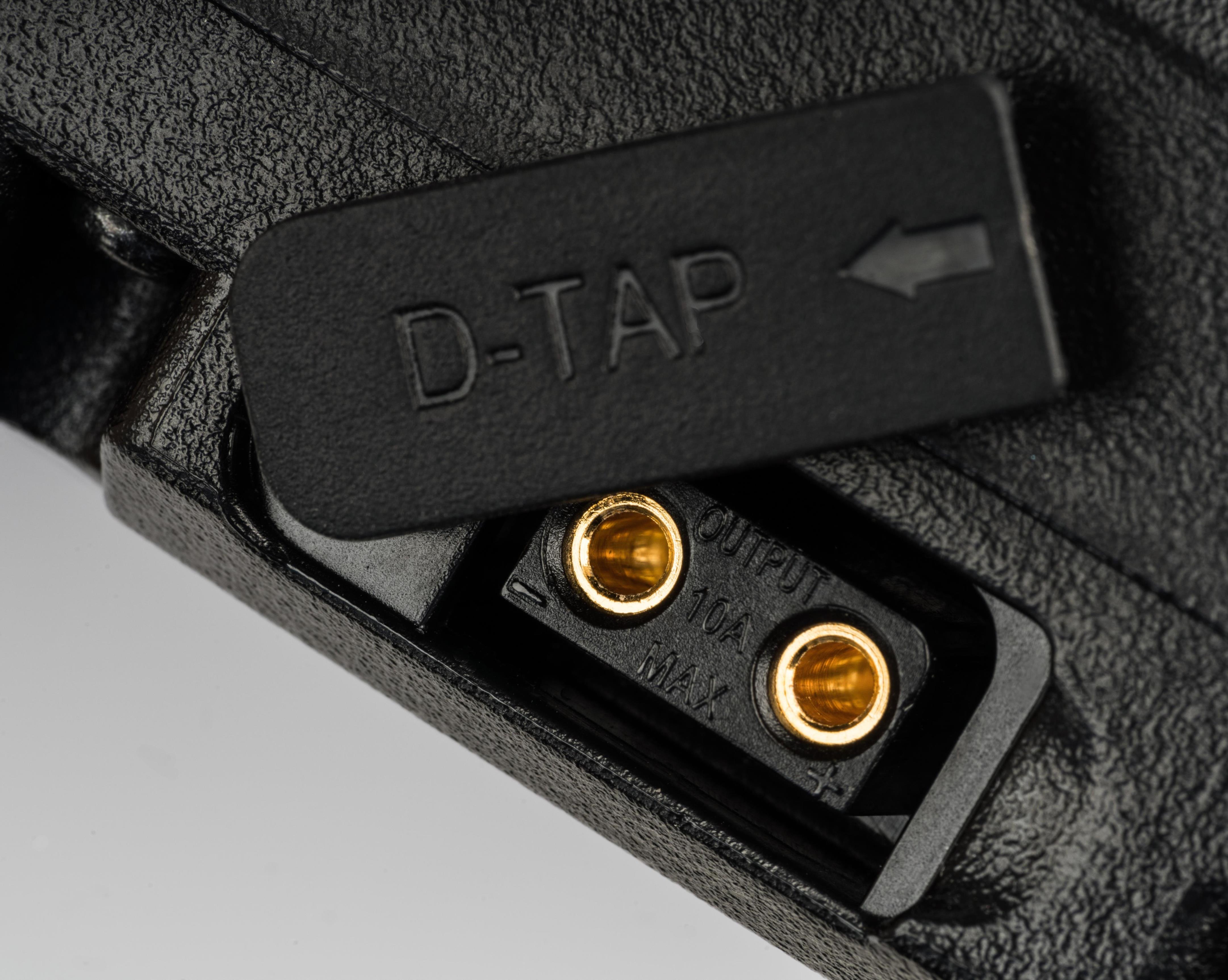

● Standard D-TAP connector for direct camera light supply.
● Built-in 5-level LED power indicator display.
● Special cell isolation module is used to ensure insulation and protection between cells, as well as good fixture to cells and PCB for better safety, stability and anti-shock performance.
● The battery shell used high quality PC materials to make the battery more sturdy and anti-dropping.
● Built-in intelligent control circuit, multiple protection for temperature, current, voltage and shot-circuit.
|
|
|
|
|
产品规格及说明
|
|
BL-M-BP160
BL-M-BP160
|
Capacity
|
11Ah
158.4Wh
|
|
Voltage
|
14.4V
|
|
Max. output
|
150W/12A
|
|
Mount type
|
V-lock
|
|
Typical run-time
|
64mins@150W
|
|
Net weight
|
1150g
|
|
Dimension
|
152(L)×95(W)×55.5(T) mm
|
|
Storage environment
|
-20℃～+40℃ 45%～75% RH (1～3 months)
-5℃～+25℃ 45%～75% RH (3～12 months)
|
|
Working environment
|
0℃～+45℃ ＜85% RH (charge)
-10℃～+50℃ ＜85% RH (discharge)
|
|
|
|
|
|
|
