Current Location:Home >> Broadcasting Video Camera Battery >> Gold Mount Battery


Broadcasting Video Camera Battery
BL-X-AN150
BL-S-AN14 BL-S-AN72 BL-X-AN16
BL-X-AN25 BL-X-AN99 BL-R-AN24
BL-AN95NC BL-R-AN16 BL-AN190N
BL-AN93HE BL-AN130N >>More

● Perfect choice for digital cinema camera, such as ARRI ALEXA and RED cameras.

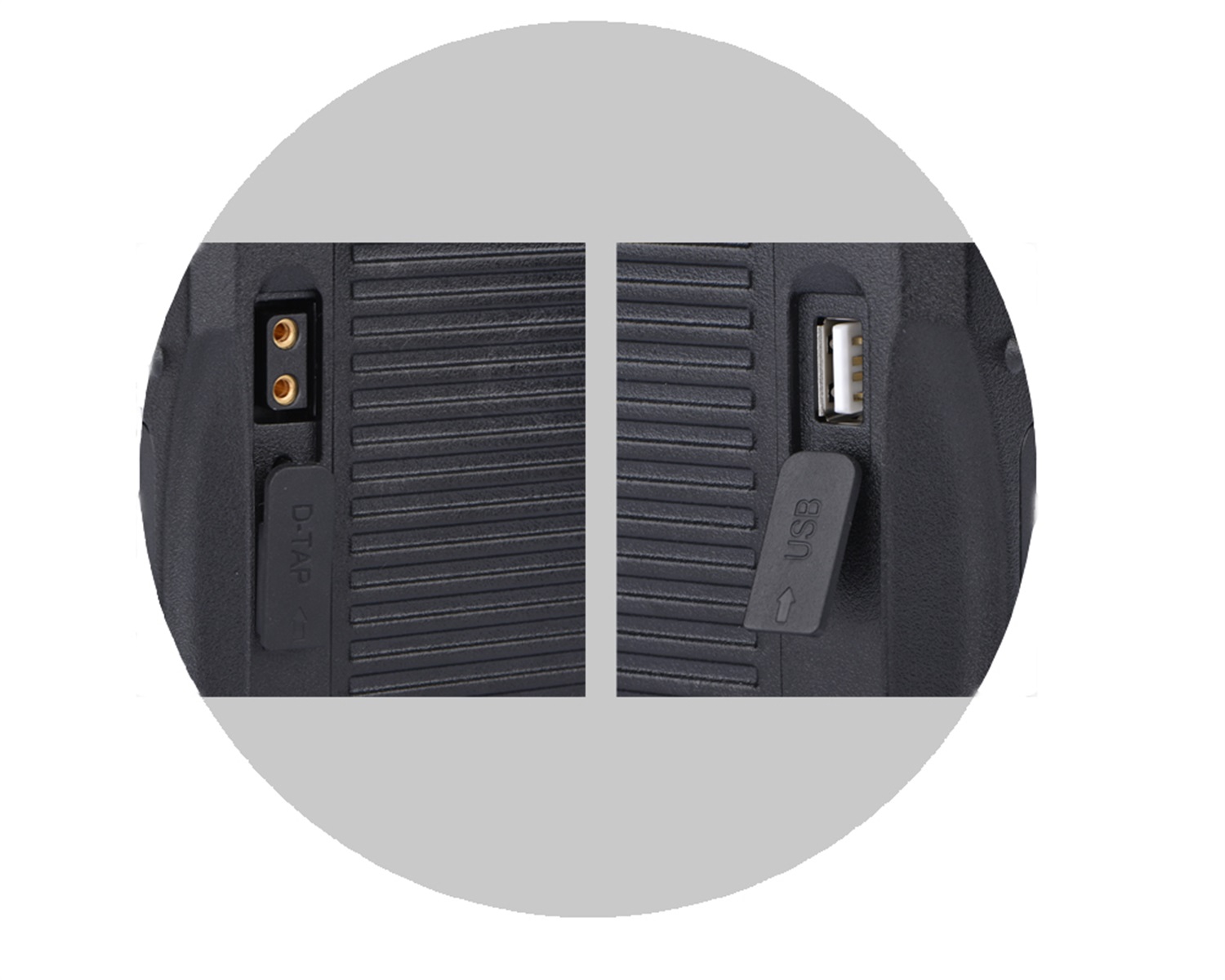

● Built-in standard D-TAP connector and 5V1A USB output.
● Honeycomb module is used to ensure insulation and protection between cells, as well as good fixture to cells and PCB for better safety, stability and anti-dropping performance.
● Offer a maximum load of 15A/180W in small size and light weight.

 产品规格及说明

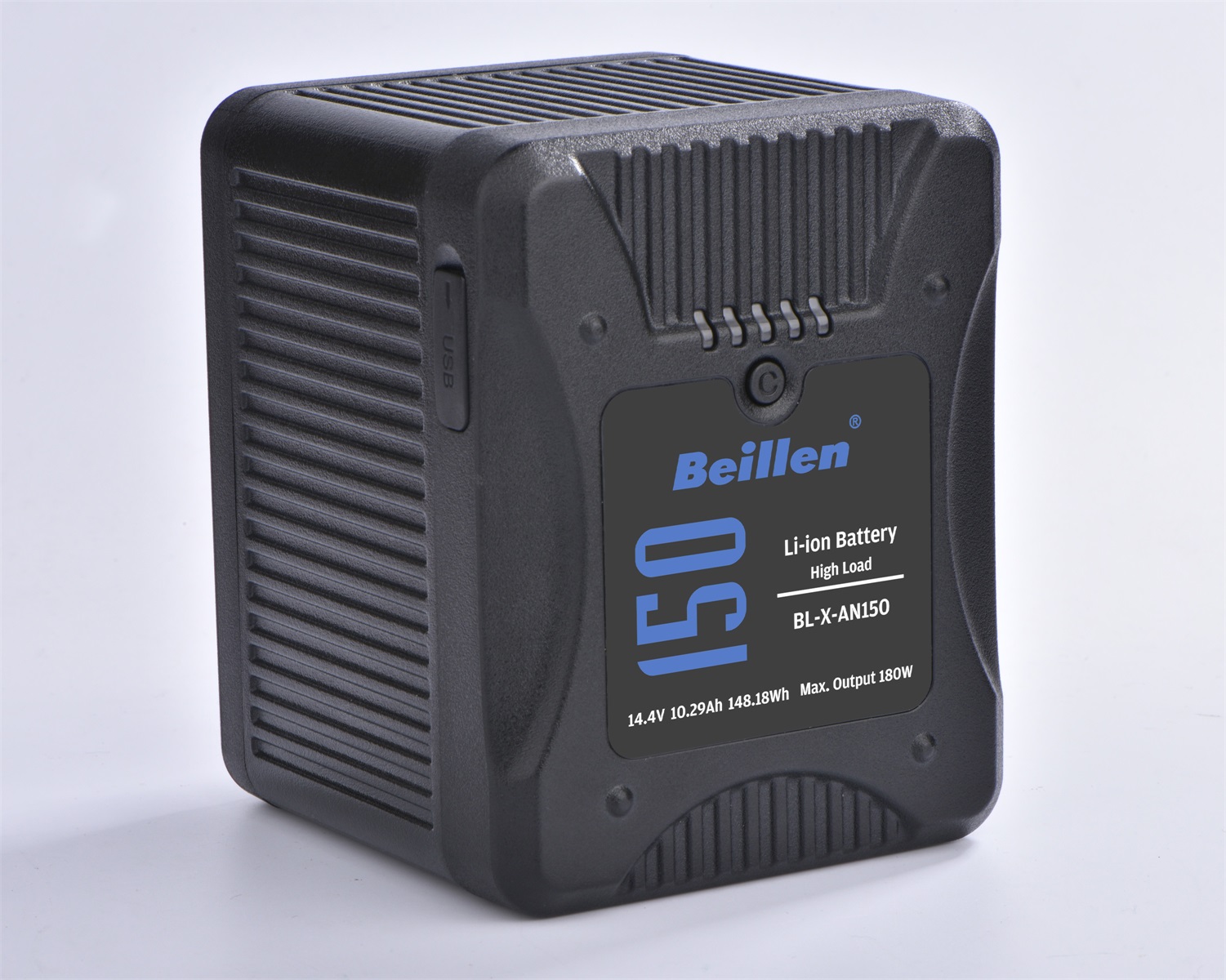

BL-X-AN150

BL-X-AN150

Capacity

10.29Ah  148.18Wh

Voltage

14.4V

Typical run-time

90mins@100W

Max. output

15A /180W

Net weight

1050g

Dimension

115(L) ×92(W) ×105.5(T)mm

Storage environment

-20℃~+40  45%75%RH  (13 months)

-20℃~+25  45%75%RH (312 months)

Working environment

0℃~+45    85%RH  (charge)

-20℃~+60  85%RH  (discharge)
